Product Description
Product Specifications:
Motor : 800W
The outer box and nameplate indicate: 500W

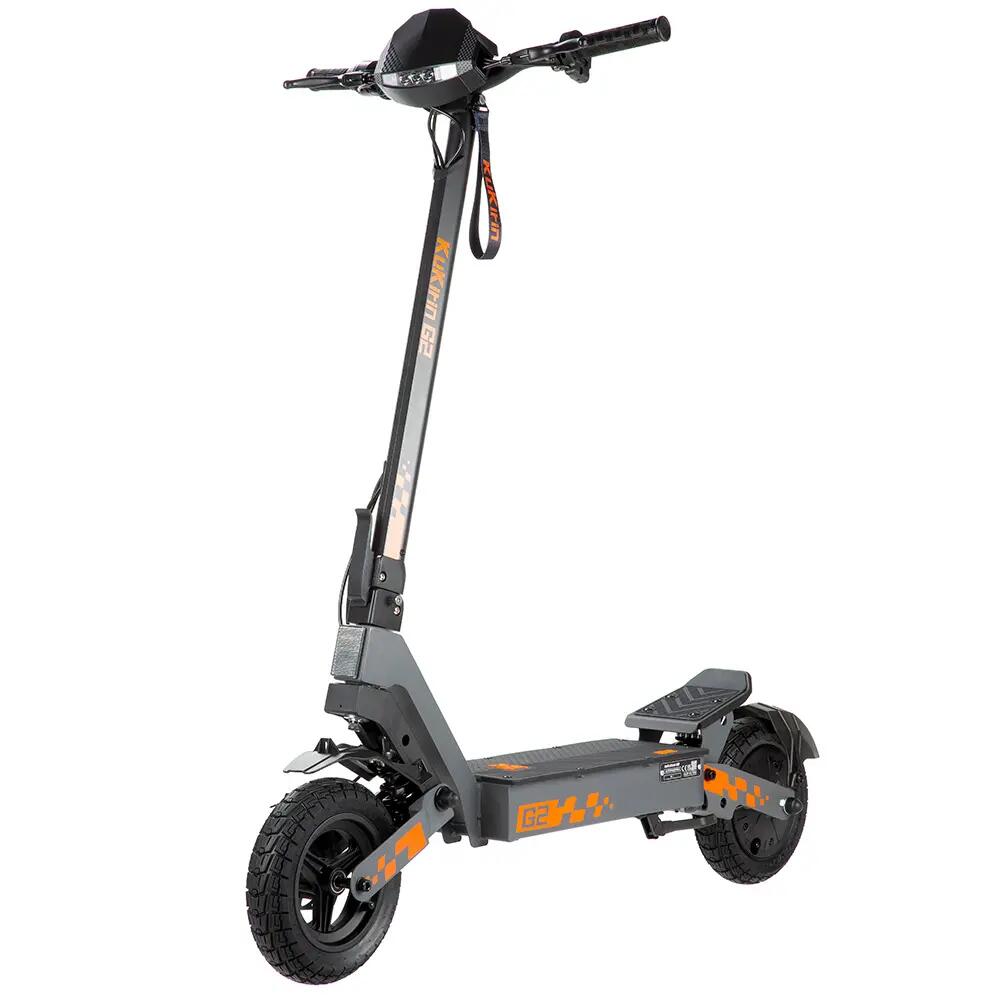

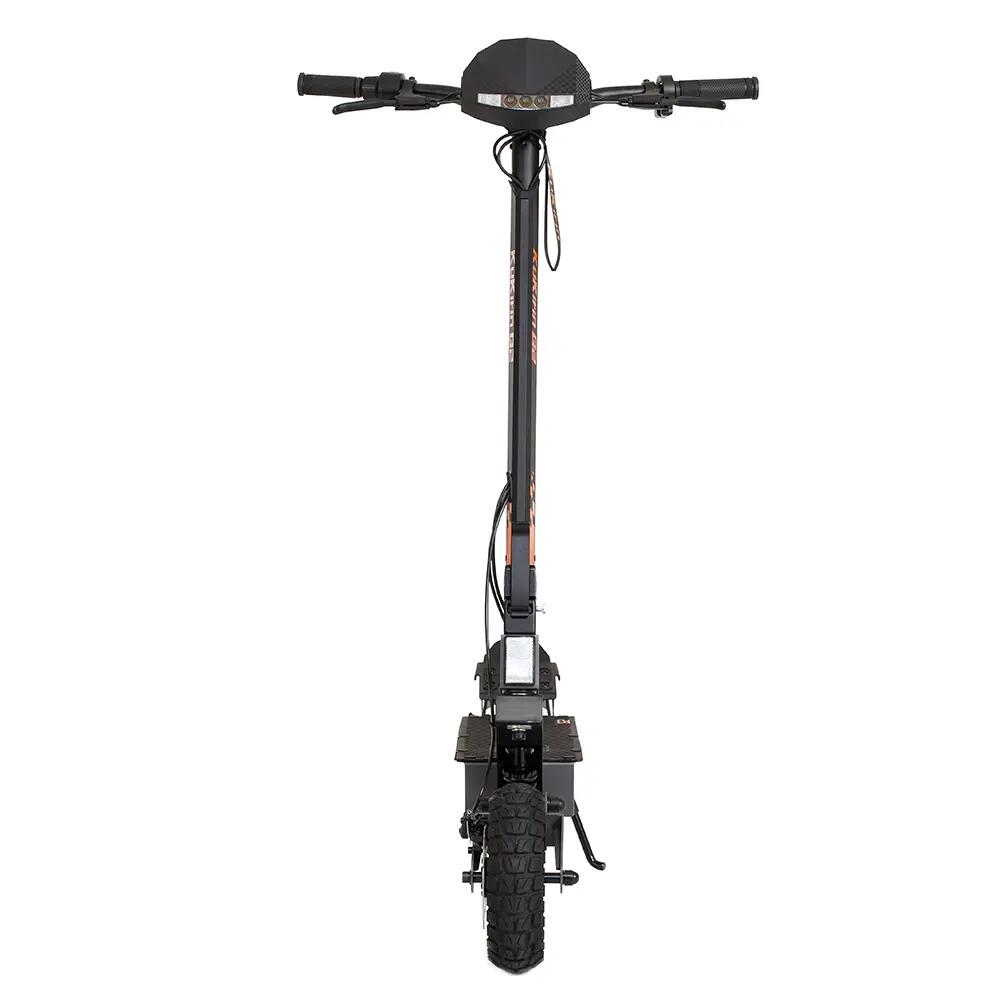

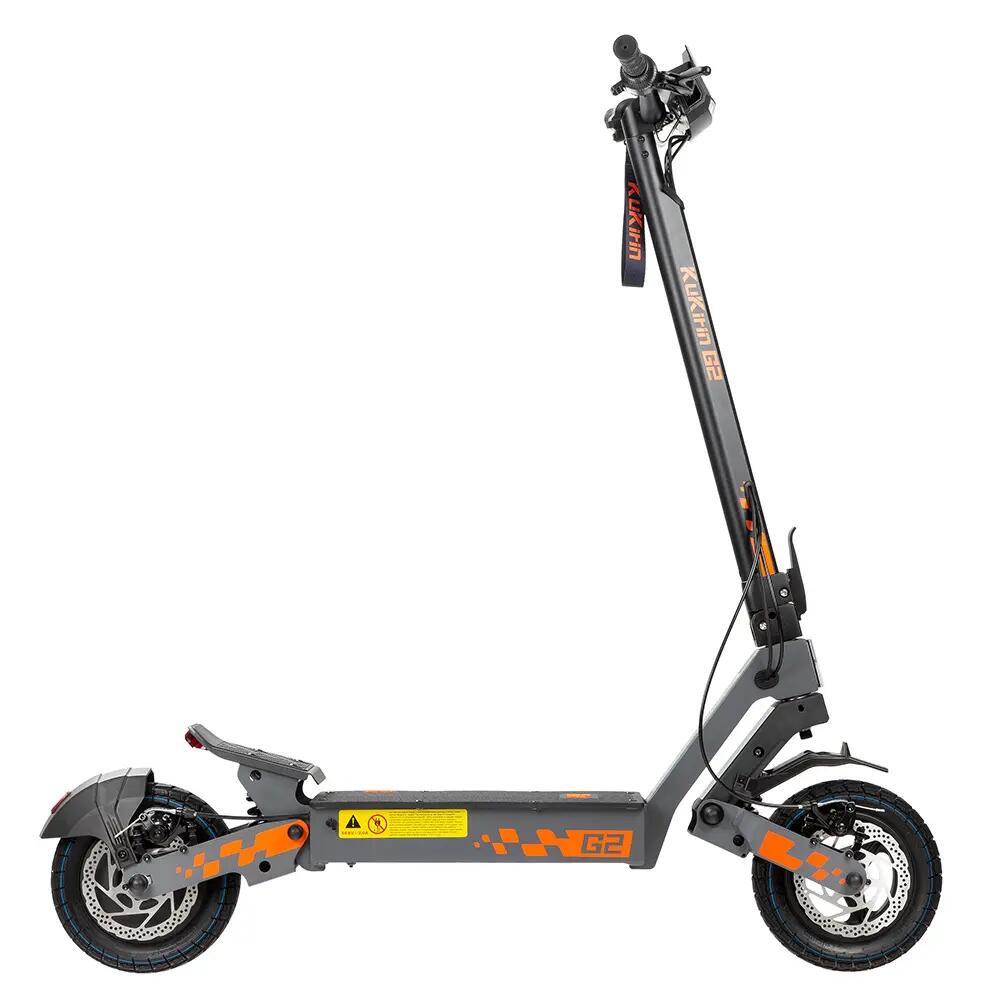

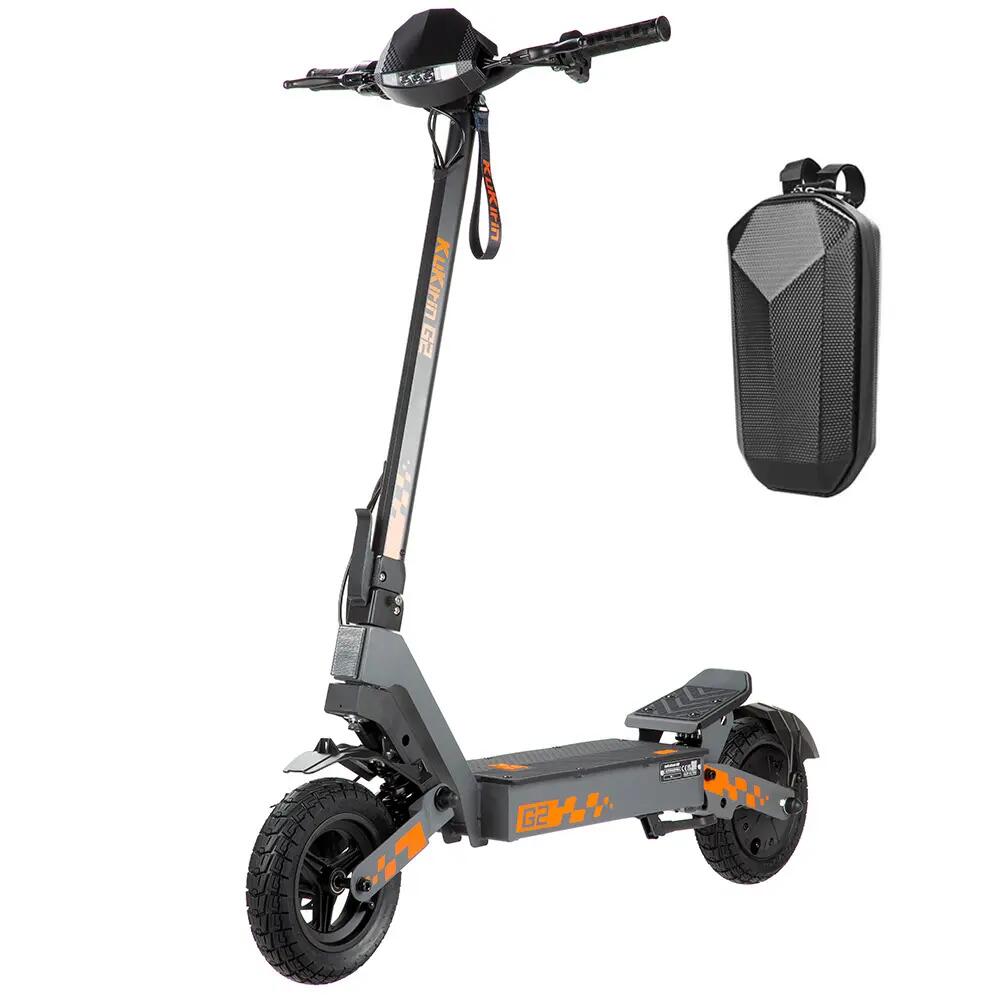

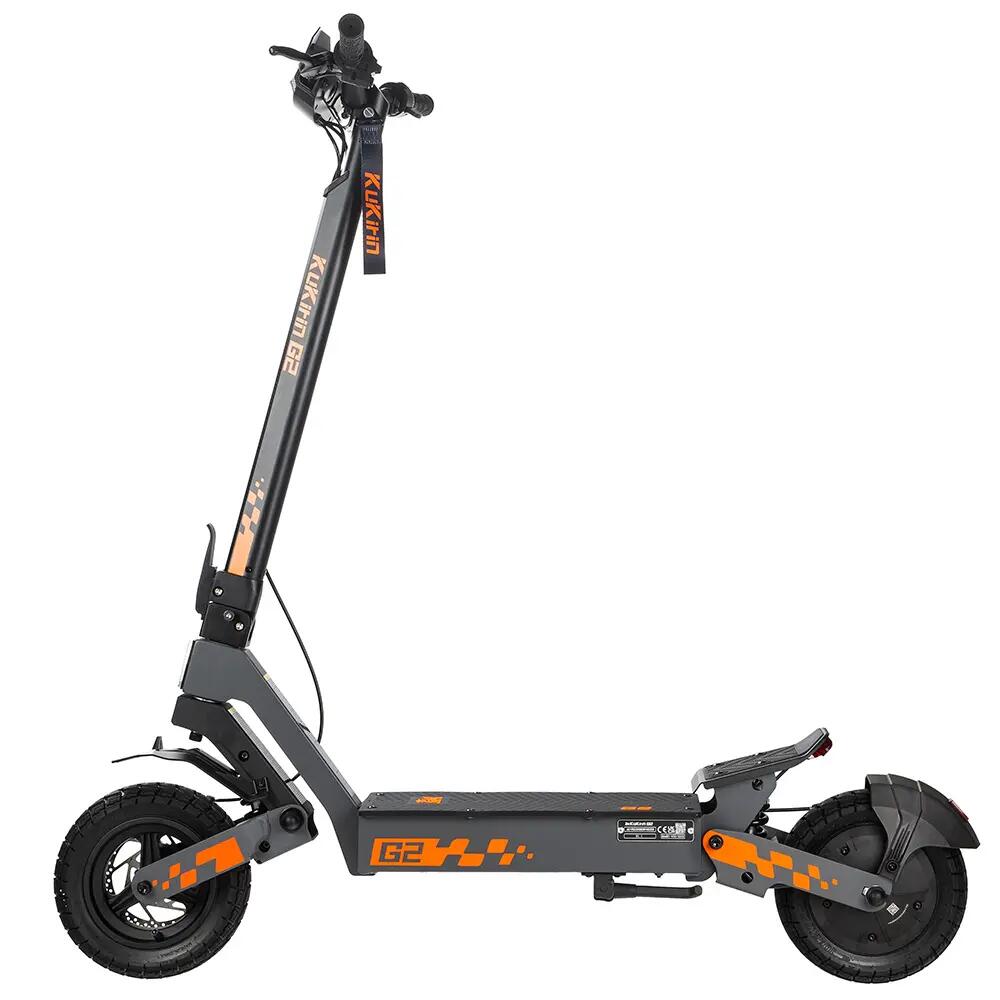

Model: KuKirin G2
Max Load: 120kg
Maximum Speed: 25-45km/h
Mileage (Middle speed, 65kg load): ≤55km (25km/h, 65kg, 22℃)
Climbing ability: ≤20° slope

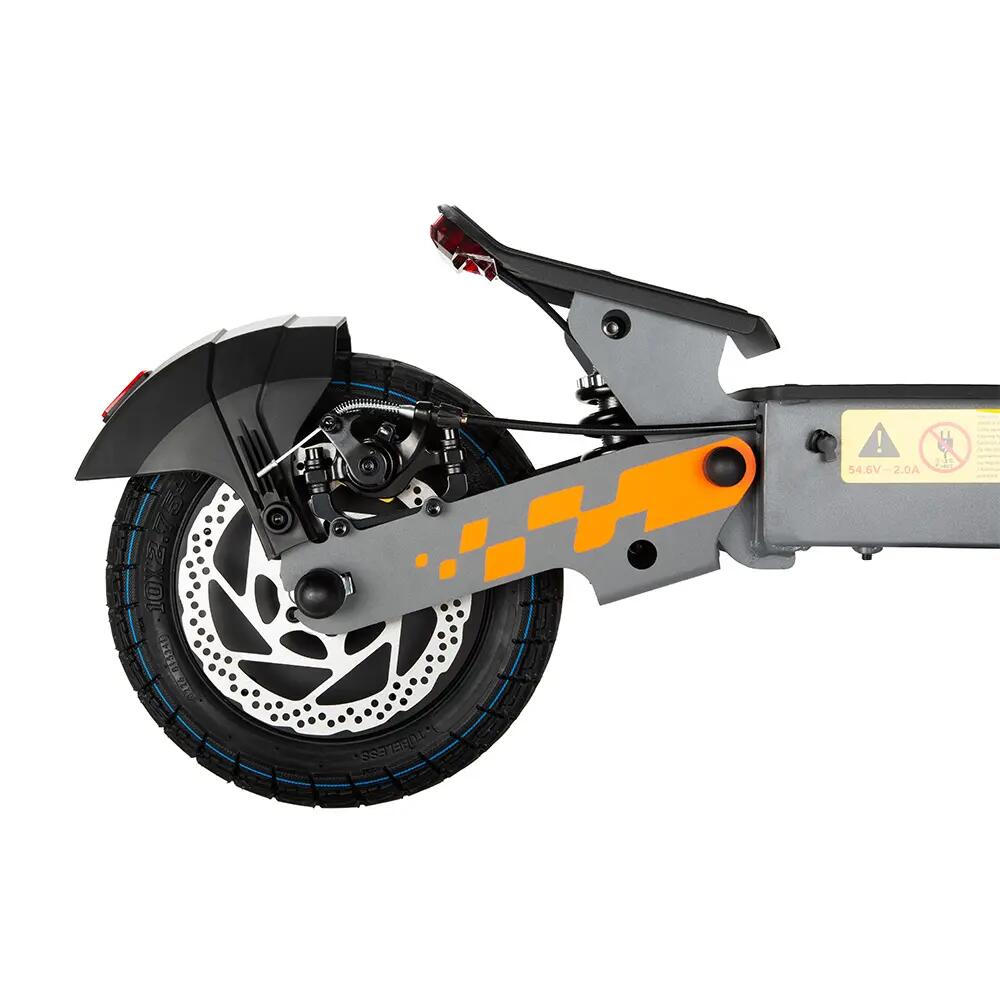

Brake system: Front and rear disc brake & e-brake
Brake distance: 4-10m
Waterproof level: IP54
Frame material: Steel + Aluminum Hybrid Frame
CE certification: Yes;
DGT certification: No;
ABE certification: No;
Voltage: 48V
Rated speed (motor): 1100±30 rpm
Max output torque: 29N.m
Battery Model: 18650 Lithium battery
Voltage: 48V
Single cell capacity: 2500mAh
Battery pack capacity: 15Ah
Standard power consumption: 0.72kW·h
Battery protect system: Battery protective board (BMS)
Charger Input voltage: 100-240VAC~50/60Hz
Charger Input current: 3A
Charger Output voltage: 54.6V
Charger Output current: 2A
Charging time: 8-9h
Front shock absorber: Spring shock absorption
Rear shock absorber: Spring shock absorption

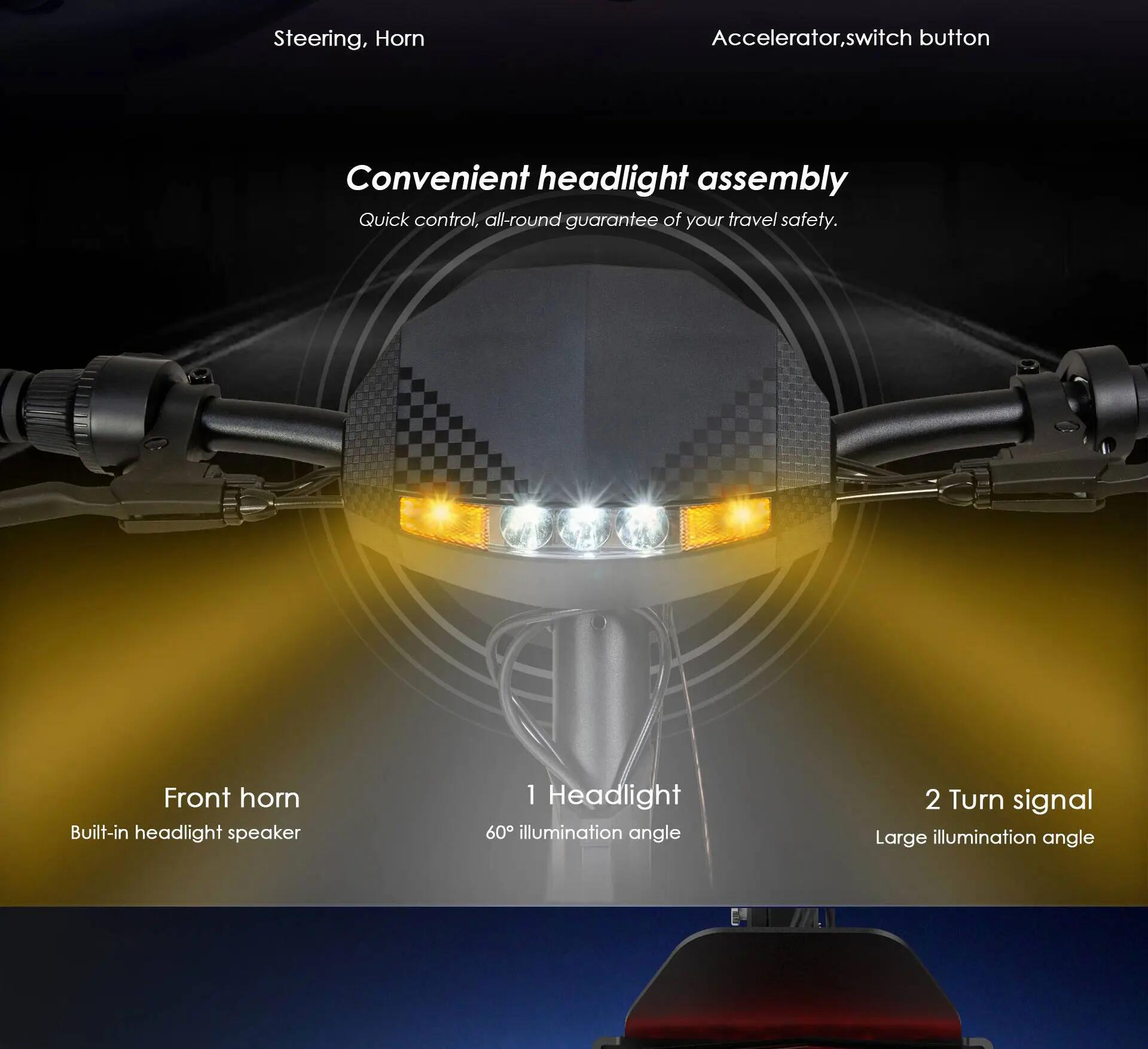

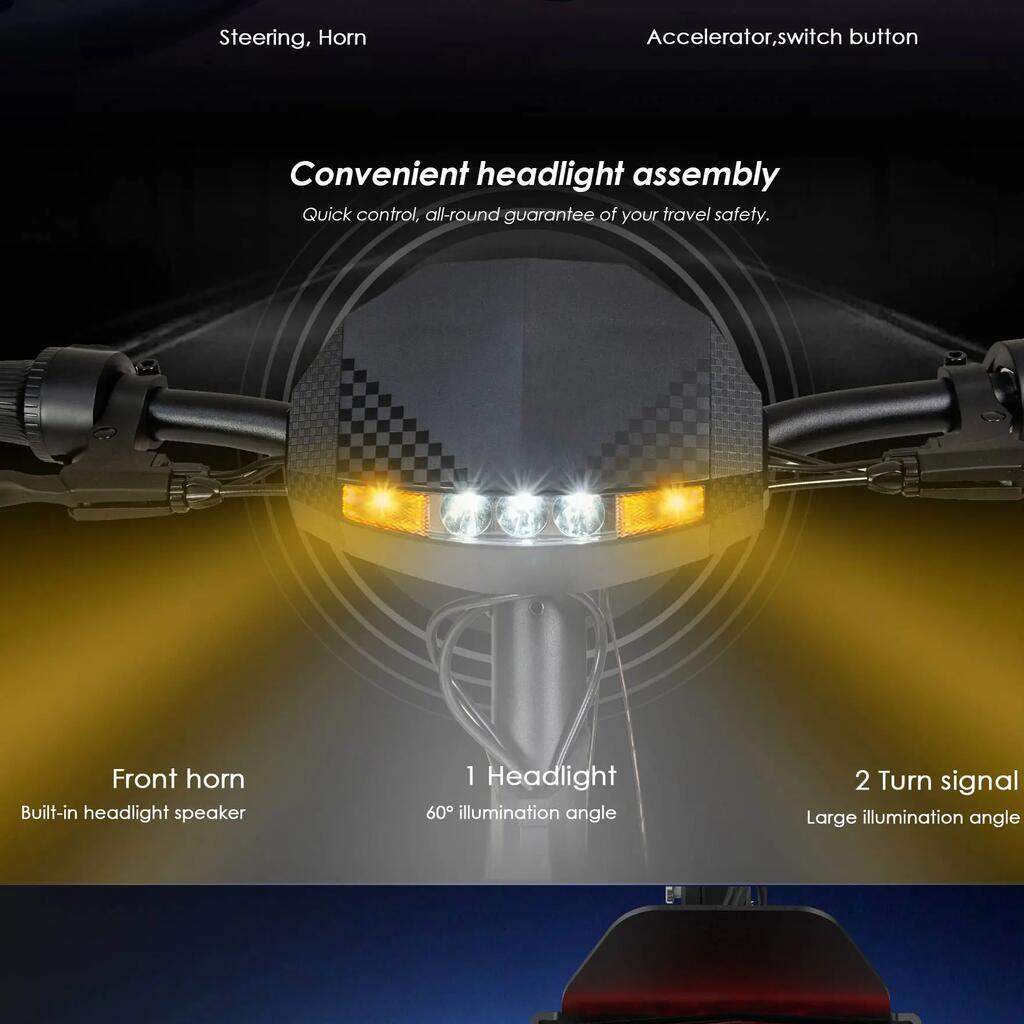

Headlight type: LED
Headlight power: 3W
Headlight illumination angle: 60°
Headlight illumination area: 4㎡

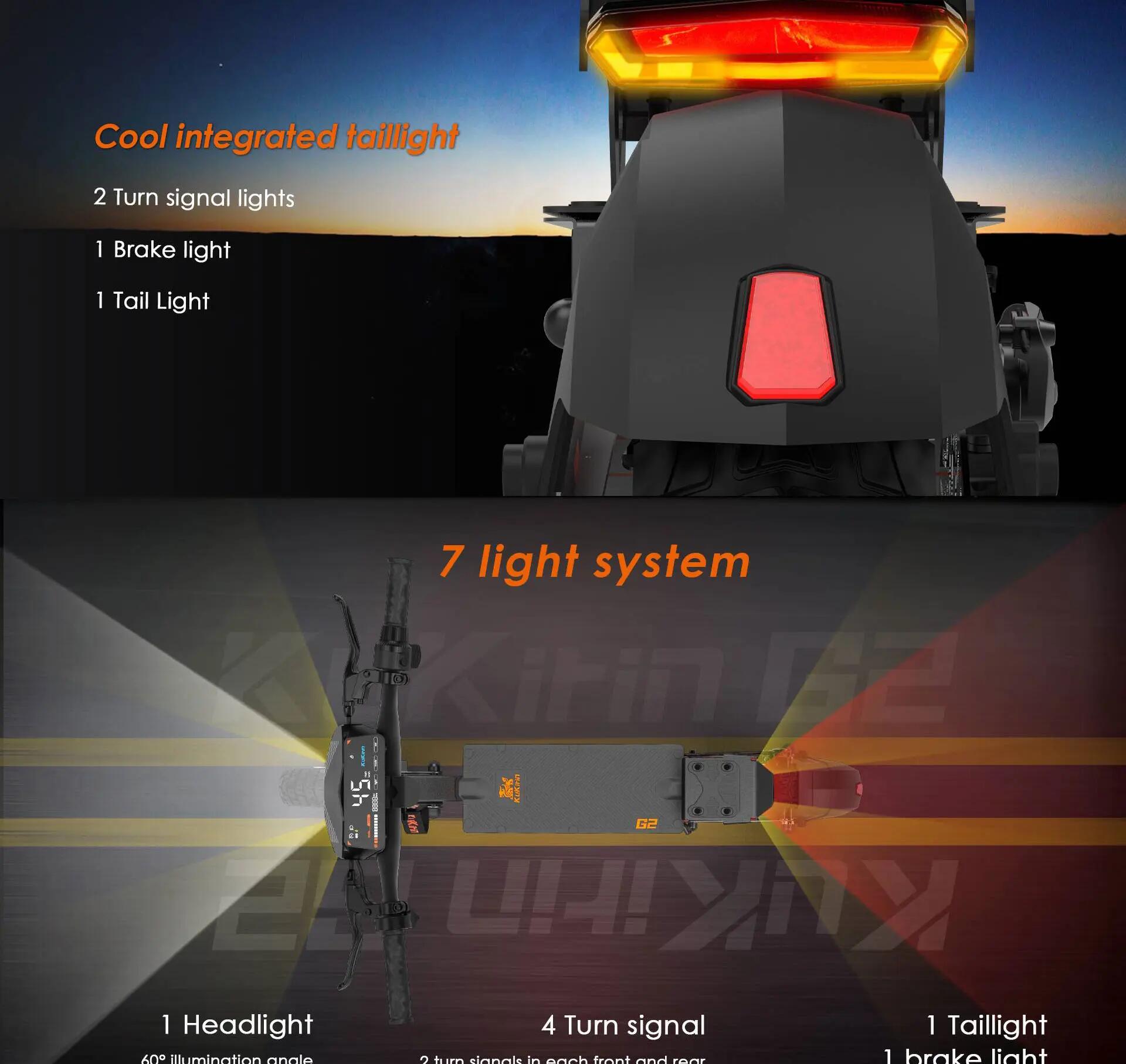

Turn light: Yes

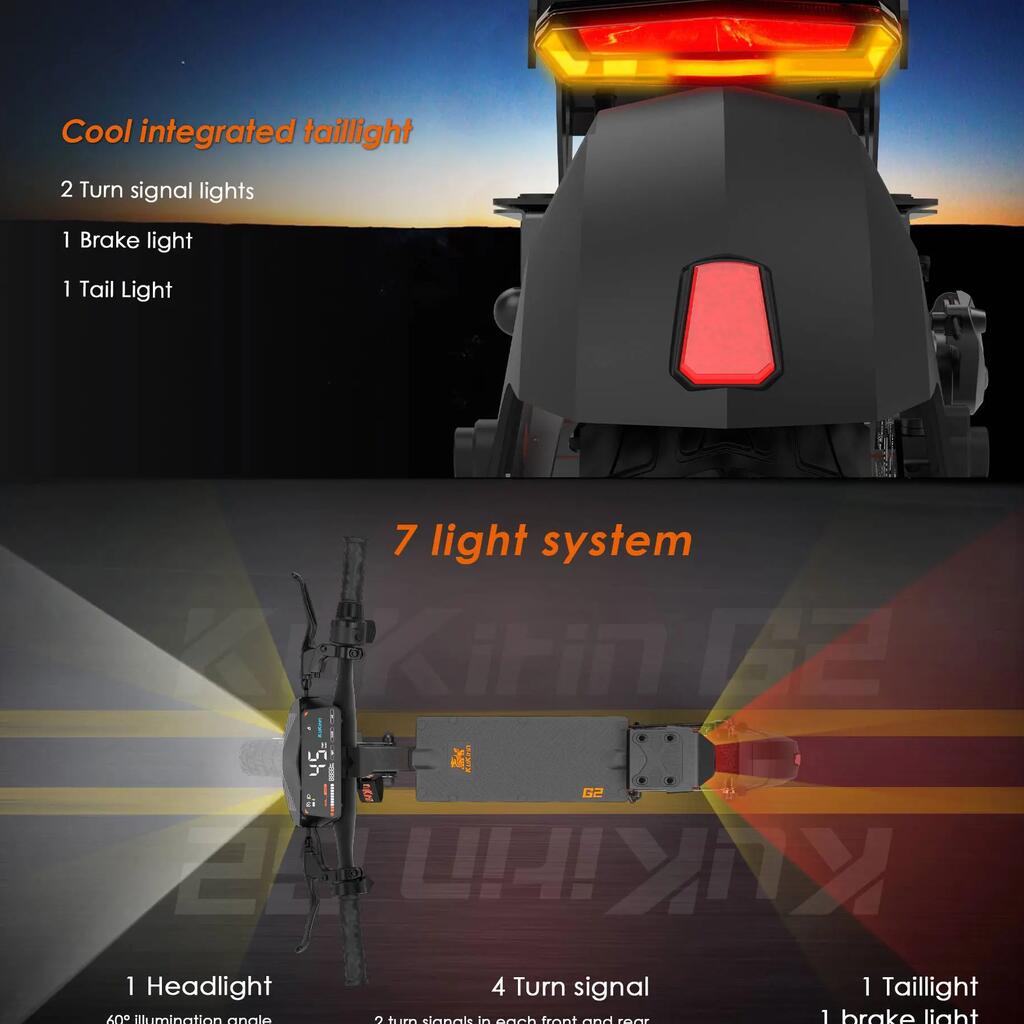

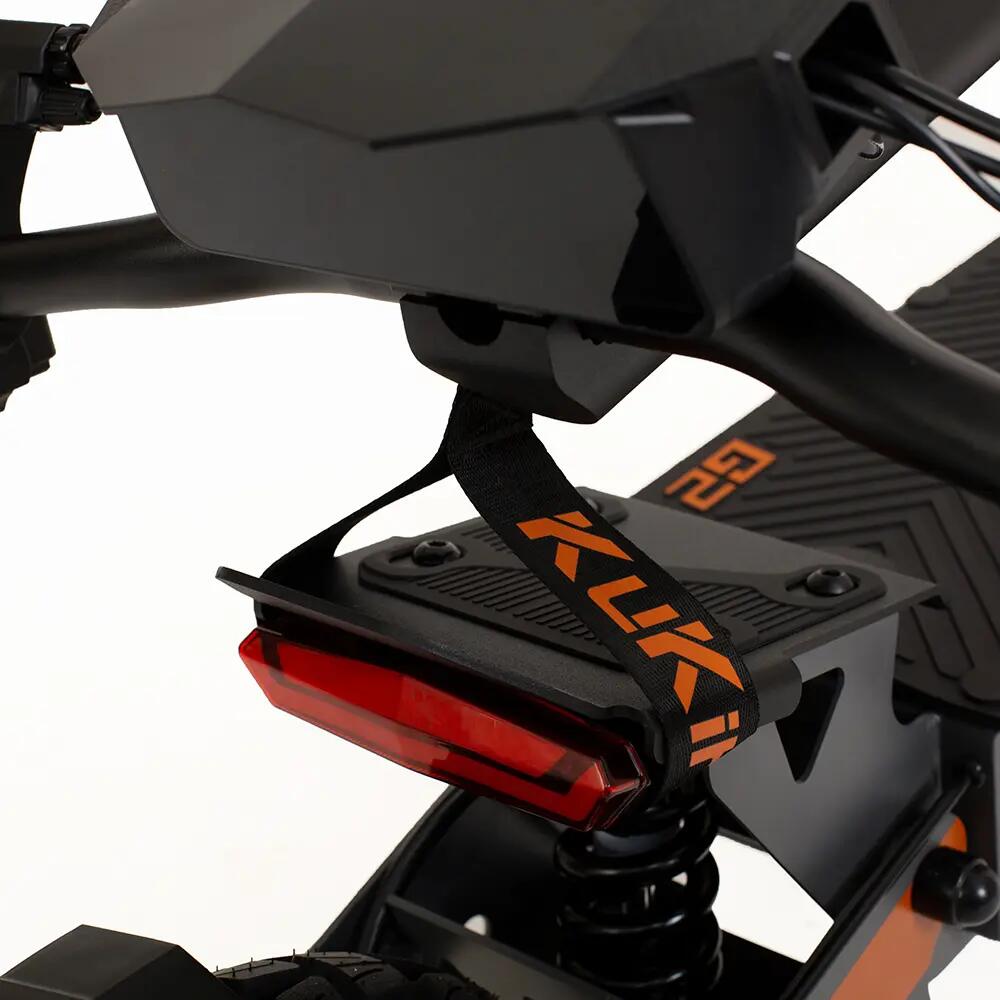

Taillight: Yes, the taillights are on when the headlight is on, taillight flashes when braking.
Tire Size: 10in (102.75-6.5)
Tire Type: Vacuum tire
Optimum tire pressure: 220-230kpa

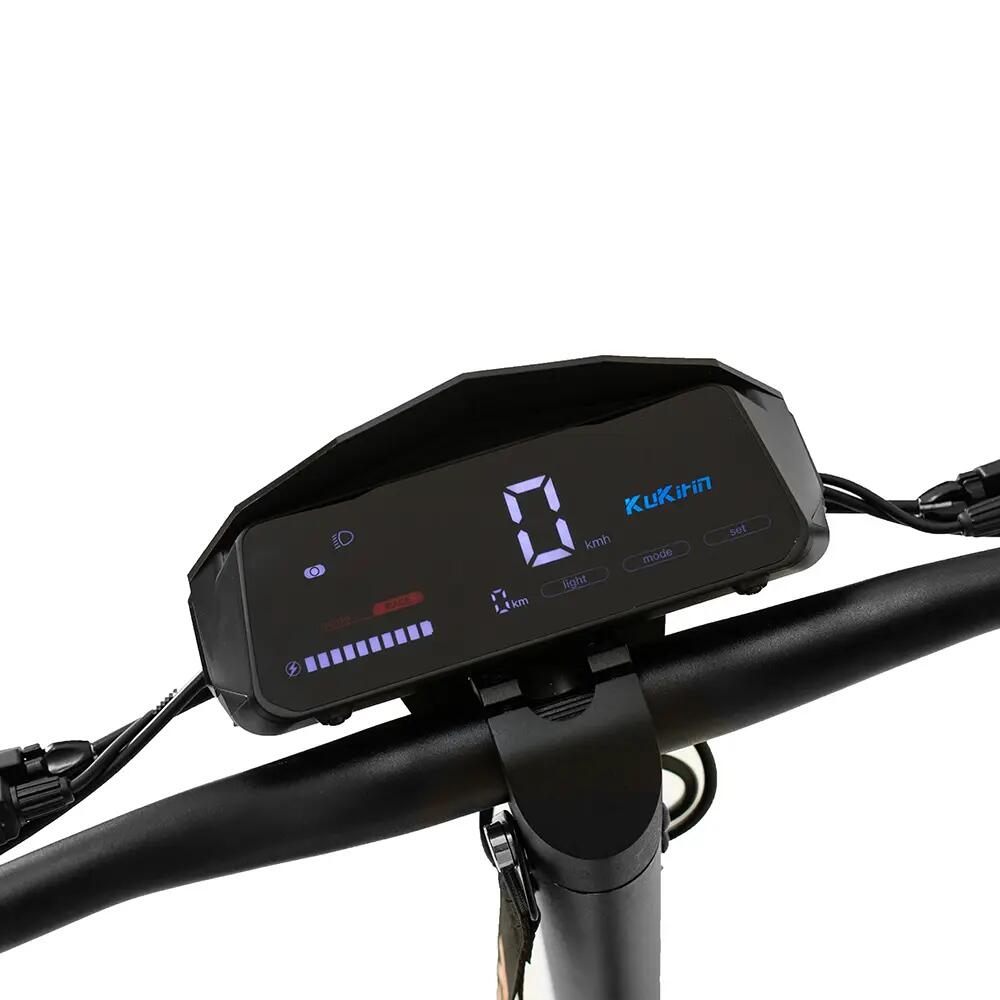

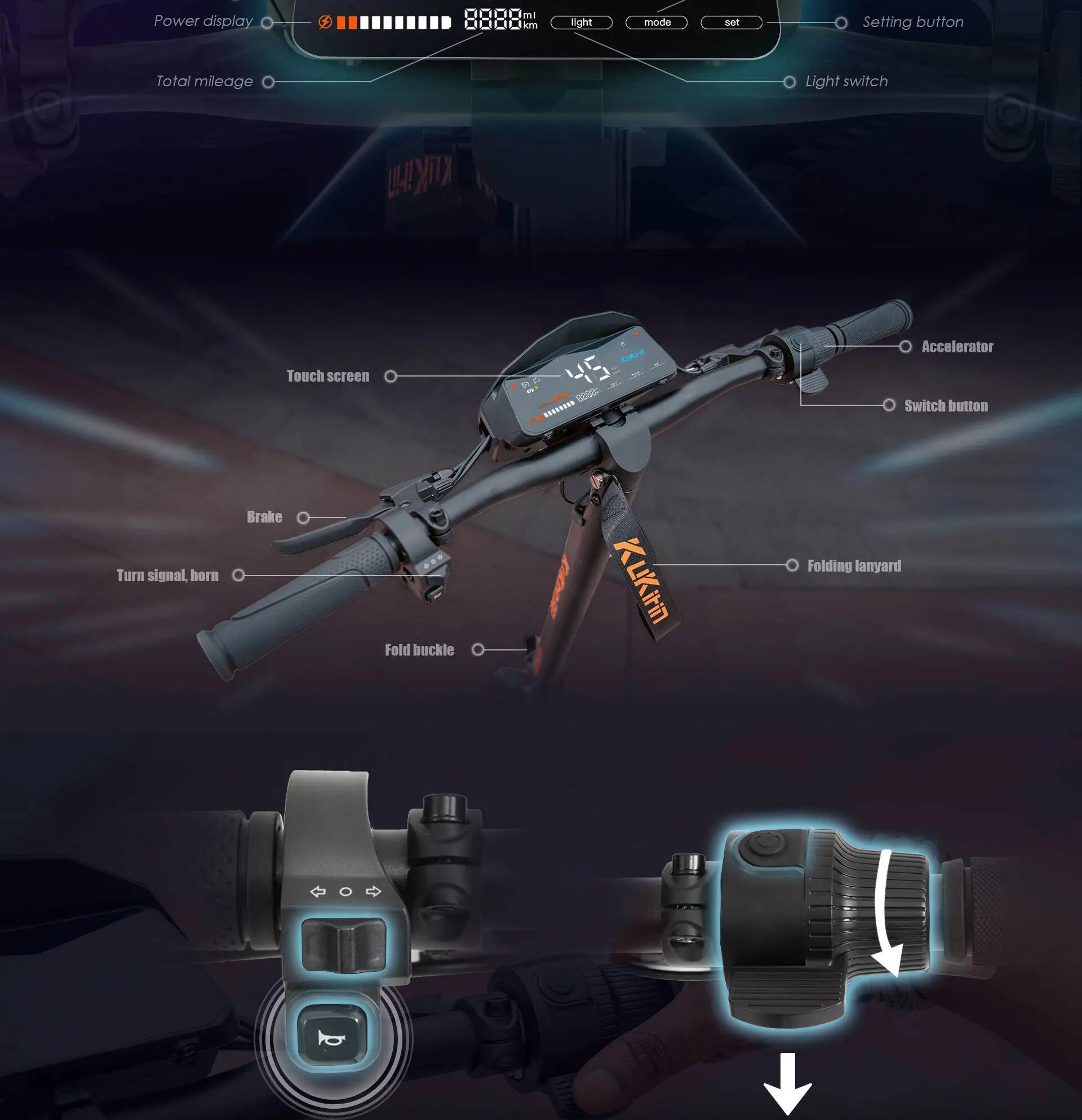

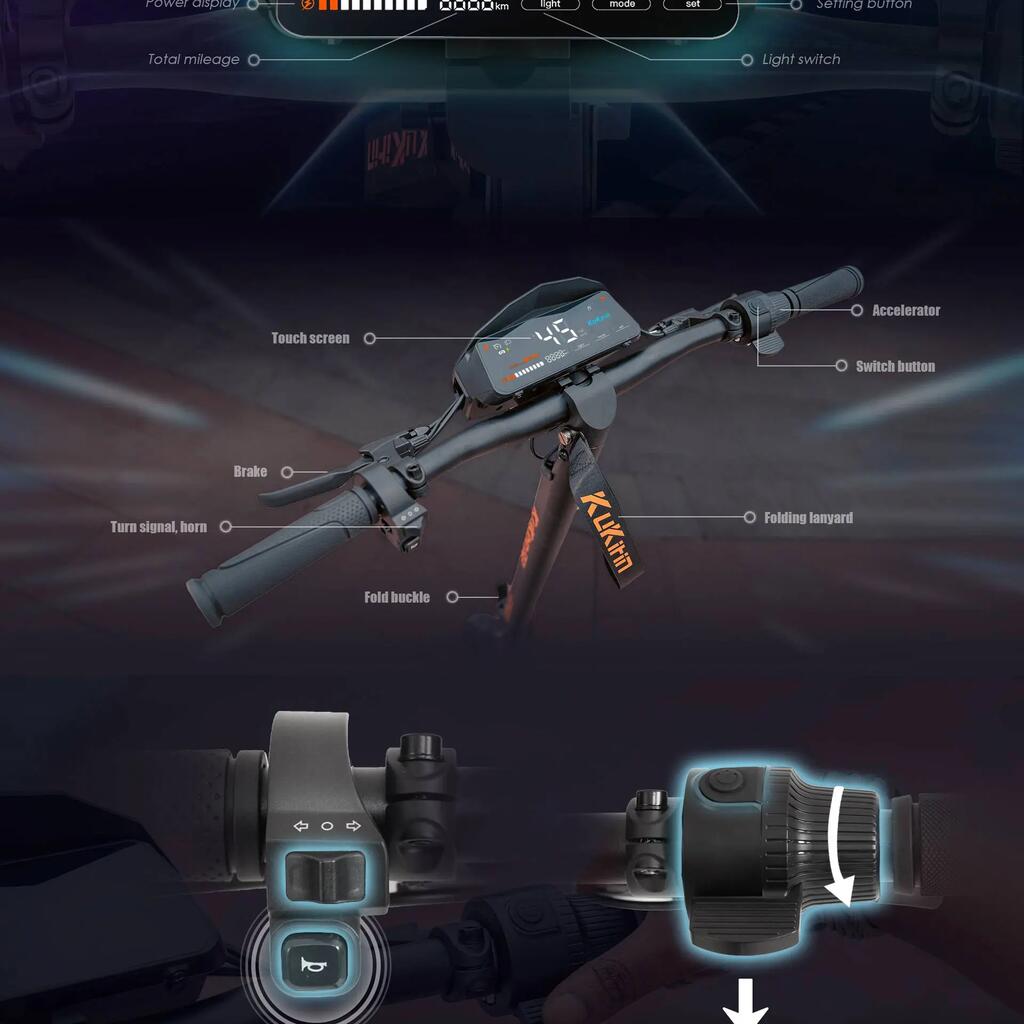

Instrument Type: LED
Display material: Instrument case ABS / instrument bracket PA6
Instrument Size: 15555mm
Show content: Speed/power/mileage/cruise control/speed mode/start mode/light mode/mileage unit mode
Function settings:
Click set to switch speed and mileage units, long press set to switch non-zero start/zero start.
Click mode to switch gears, long press mode to turn off cruise control.
Click light to turn on and off the headlights.
Click the multi-function button to turn on and off the headlights, double-click to switch gears, long-press to enter the hibernation state (click to wake from hibernation).
Press and hold the brake, click the multi-function button four times in a row to switch the speed limit mode.
Packing List:
User manual 1
Charger 1
Toolkits 1
Rear fender 1
Rear fender mounting bolts *2
